Examples of 4116 class RAM chips

16K by 1 bit, in a particular pin configuration ('pinout').
16K by 1 bit = 16,384 bits

Note that some makers did not use "4116" in their part number.  That is because makers did not need to adhere to a common naming standard.  Some makers may have even purposely not used 4116 to avoid possible litigation action.

DIP packages (of plastic and ceramic) listed only - LCC and SIP packages are omitted.

Japanese makers tend not to print prefixes on ICs and transistors.


IMPORTANT:  The table below does not show all of the chip's characteristics/specifications (that is what a data sheet is for).
Apart from major differences (such as access time), there can be differences (some subtle) that result in a particular 4116 chip not being suitable for your purpose.
Sometimes, a device maker will produce a list of RAM chips known to be compatible with their device (example).


Make Part Number Access
Time		 Photo Source Source Source Data Sheet   Comment
AMD AM9016C 300 ns   4116 list 1     datasheet Hermetic DIP: AM9016CDC / Molded DIP:AM9016CPC
AMD AM9016D 250 ns photo 4116 list 1     datasheet Hermetic DIP: AM9016DDC / Molded DIP:AM9016DPC
AMD AM9016E 200 ns   4116 list 1     datasheet Hermetic DIP: AM9016EDC / Molded DIP:AM9016EPC

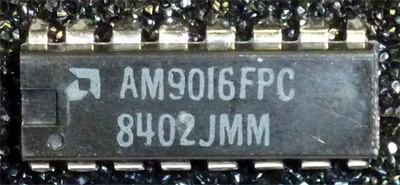

AMD AM9016F 150 ns photo 4116 list 1     datasheet Hermetic DIP: AM9016FDC / Molded DIP:AM9016FPC

[GDR] U256C ?     4116 list 2        (GDR = German Democratic Republic)
[GDR] U256D ? photo   4116 list 2        (GDR = German Democratic Republic)

Fairchild          F4116-2 150 ns   4116 list 1      datasheet Plastic case: F4116-2P / Ceramic case: F4116-2D
Fairchild          F4116-3 200 ns   4116 list 1      datasheet Plastic case: F4116-3P / Ceramic case: F4116-3D
Fairchild          F4116-4 250 ns   4116 list 1      datasheet Plastic case: F4116-4P / Ceramic case: F4116-4D
Fairchild          F16K-2 150 ns     4116 list 3     An early version of the F4116-2 ??
Fairchild          F16K-3 200 ns     4116 list 3     An early version of the F4116-3 ??
Fairchild          F16K-4 250 ns     4116 list 3     An early version of the F4116-4 ??

Fujitsu MB8116E 200 ns photo 4116 list 1     datasheet
Fujitsu MB8116H 150 ns   4116 list 1     datasheet
Fujitsu MB8216E 120 ns   4116 list 1
Fujitsu MB8216N 250 ns   4116 list 1

Hitachi        HM4716A-1 120 ns   4116 list 1     datasheet Ceramic case.
Hitachi        HM4716A-2 150 ns   4116 list 1     datasheet Ceramic case.
Hitachi        HM4716A-3 200 ns   4116 list 1     datasheet Ceramic case.
Hitachi        HM4716A-4 250 ns   4116 list 1     datasheet Ceramic case.
Hitachi        HM4716AP-1 120 ns   4116 list 1     datasheet Plastic case.
Hitachi        HM4716AP-2 150 ns   4116 list 1     datasheet Plastic case.
Hitachi        HM4716AP-3 200 ns   4116 list 1     datasheet Plastic case.
Hitachi        HM4716AP-4 250 ns   4116 list 1     datasheet Plastic case.

Intel 2117-2 150 ns   4116 list 1     datasheet Plastic case.

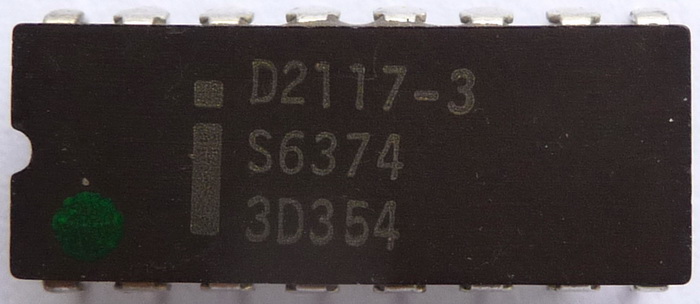

Intel 2117-3 200 ns photo 4116 list 1     datasheet Plastic case.
Intel 2117-4 250 ns   4116 list 1     datasheet Plastic case.

Intersil IM4116-2 150 ns   4116 list 1     datasheet Plastic case: IM4116-2P / Ceramic case: IM4116-2D
Intersil IM4116-3 200 ns   4116 list 1     datasheet Plastic case: IM4116-3P / Ceramic case: IM4116-3D
Intersil IM4116-4 250 ns   4116 list 1     datasheet Plastic case: IM4116-4P / Ceramic case: IM4116-4D

ITT ITT4116-2 150 ns         datasheet
ITT ITT4116-3 200 ns photo       datasheet
ITT ITT4116-4 250 ns         datasheet

Mitsubishi M5K4116S-2 150 ns   4116 list 1     datasheet Ceramic case.
Mitsubishi M5K4116S-3 200 ns   4116 list 1     datasheet Ceramic case.
Mitsubishi M5K4116S-4 250 ns         datasheet Ceramic case.
Mitsubishi M5K4116P-2 150 ns   4116 list 1     datasheet Plastic case.

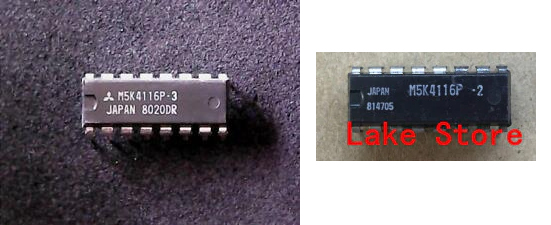

Mitsubishi M5K4116P-3 200 ns photo 4116 list 1     datasheet Plastic case.
Mitsubishi M5K4116P-4 250 ns         datasheet Plastic case.

Mitsubishi M58759-15 150 ns   4116 list 1
Mitsubishi M58759-20 200 ns   4116 list 1
Mitsubishi M58759-25 250 ns   4116 list 1

Mostek        MK4116J-2 150 ns   4116 list 1     datasheet Ceramic case.
Mostek        MK4116J-3 200 ns   4116 list 1     datasheet Ceramic case.
Mostek        MK4116J-4 250 ns   4116 list 1       Ceramic case.
Mostek        MK4116N-2 150 ns   4116 list 1     datasheet Plastic case.
Mostek        MK4116N-3 200 ns photo 4116 list 1     datasheet Plastic case.
Mostek        MK4116N-4 250 ns   4116 list 1       Plastic case.

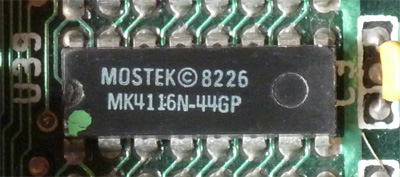

Mostek        MK4116N-44 ? photo         Photo of chip on a '16KB-64KB' type of 5150 motherboard.
Mostek        MK4116N-53 200 ns         datasheet
Mostek        MK4116P-2 150 ns         datasheet Ceramic case (as indicated by datasheet, on page 10)
Mostek        MK4116P-3 200 ns         datasheet Ceramic case (as indicated by datasheet, on page 10)

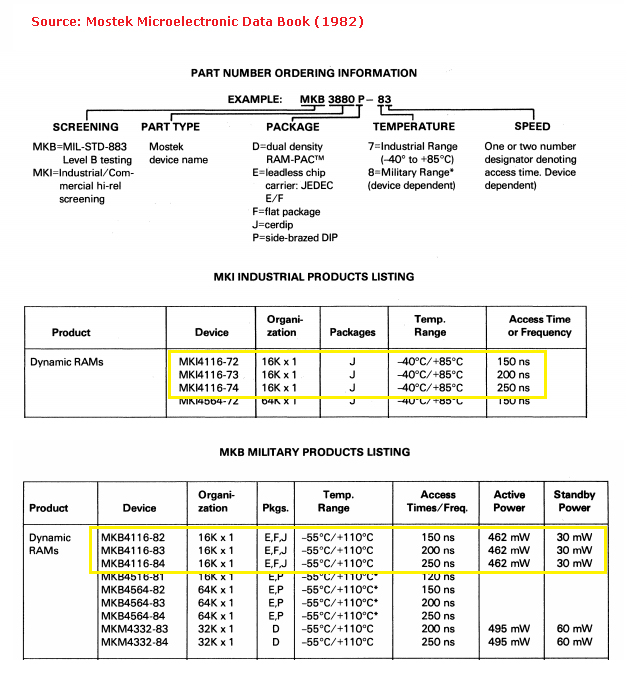

Mostek MKI4116J-72 150 ns     4116 list 4     MKI=industrial      Ceramic case      Thomson acquired Mostek in 1985.
Mostek MKI4116J-73 200 ns     4116 list 4     MKI=industrial      Ceramic case      Thomson acquired Mostek in 1985.
Mostek MKI4116J-74 250 ns     4116 list 4     MKI=industrial      Ceramic case      Thomson acquired Mostek in 1985.

Mostek MKB4116J-82 150 ns   4116 list 1 4116 list 4   datasheet MKB=military      Ceramic case      Thomson acquired Mostek in 1985.
Mostek MKB4116J-83 200 ns   4116 list 1 4116 list 4   datasheet MKB=military      Ceramic case      Thomson acquired Mostek in 1985.
Mostek MKB4116J-84 250 ns   4116 list 1 4116 list 4   datasheet MKB=military      Ceramic case      Thomson acquired Mostek in 1985.
Mostek MKB4116P-82 150 ns   4116 list 1     datasheet MKB=military      Ceramic case      Thomson acquired Mostek in 1985.
Mostek MKB4116P-83 200 ns   4116 list 1     datasheet MKB=military      Ceramic case      Thomson acquired Mostek in 1985.
Mostek MKB4116P-84 250 ns   4116 list 1     datasheet MKB=military      Ceramic case      Thomson acquired Mostek in 1985.

Motorola MCM4116BC-15 150 ns   4116 list 1     datasheet Ceramic case.
Motorola MCM4116BC-20 200 ns   4116 list 1     datasheet Ceramic case.
Motorola MCM4116BC-25 250 ns   4116 list 1     datasheet Ceramic case.
Motorola MCM4116BC-30 300 ns   4116 list 1     datasheet Ceramic case.
Motorola MCM4116BP-15 150 ns   4116 list 1     datasheet Plastic case.
Motorola MCM4116BP-20 200 ns   4116 list 1     datasheet Plastic case.

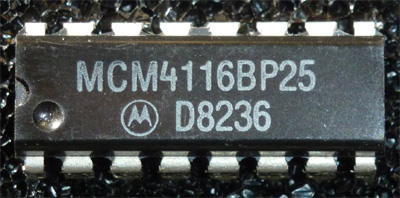

Motorola MCM4116BP-25 250 ns photo 4116 list 1     datasheet Plastic case.
Motorola MCM4116BP-30 300 ns   4116 list 1     datasheet Plastic case.

Motorola        MCM6616-3 200 ns   4116 list 1       Plastic case: MCM6616-3P / Ceramic case: MCM6616-3L
Motorola        MCM6616-4 250 ns   4116 list 1       Plastic case: MCM6616-4P / Ceramic case: MCM6616-4L
Motorola        MCM6616-5 300 ns   4116 list 1       Plastic case: MCM6616-5P / Ceramic case: MCM6616-5L
Motorola        MCM6616L 350 ns   4116 list 1       Ceramic case.

National Semiconductor MM5290J-2 150 ns   4116 list 1     datasheet Ceramic case.
National Semiconductor MM5290J-3 200 ns   4116 list 1     datasheet Ceramic case.
National Semiconductor MM5290J-4 250 ns   4116 list 1     datasheet Ceramic case.
National Semiconductor MM5290N-2 150 ns   4116 list 1     datasheet Plastic case.

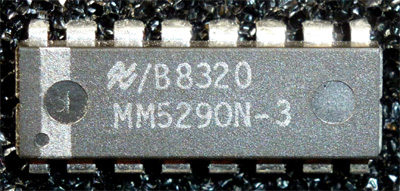

National Semiconductor MM5290N-3 200 ns photo 4116 list 1     datasheet Plastic case.
National Semiconductor MM5290N-4 250 ns   4116 list 1     datasheet Plastic case.

NEC        µPD416C 300 ns   4116 list 1     datasheet No dash number after "µPD416C". Plastic case.
NEC        µPD416C-1 250 ns   4116 list 1     datasheet Plastic case.
NEC        µPD416C-2 200 ns   4116 list 1     datasheet Plastic case.
NEC        µPD416C-3 150 ns   4116 list 1     datasheet Plastic case.
NEC        µPD416C-5 120 ns         datasheet Plastic case.
NEC        µPD416D 300 ns   4116 list 1     datasheet No dash number after "µPD416D". Ceramic case.
NEC        µPD416D-1 250 ns   4116 list 1     datasheet Ceramic case.
NEC        µPD416D-2 200 ns   4116 list 1     datasheet Ceramic case.
NEC        µPD416D-3 150 ns   4116 list 1     datasheet Ceramic case.
NEC        µPD416D-5 120 ns         datasheet Ceramic case.

Oki MSM3716-2 150 ns   4116 list 1     datasheet
Oki MSM3716-3 200 ns   4116 list 1     datasheet

Panasonic / Matsushita MN4116 200 ns     4116 list 2   datasheet

Sharp LH6116-3 200 ns   4116 list 1
Sharp LH6116-4 250 ns   4116 list 1
Sharp LH6116-5 300 ns   4116 list 1

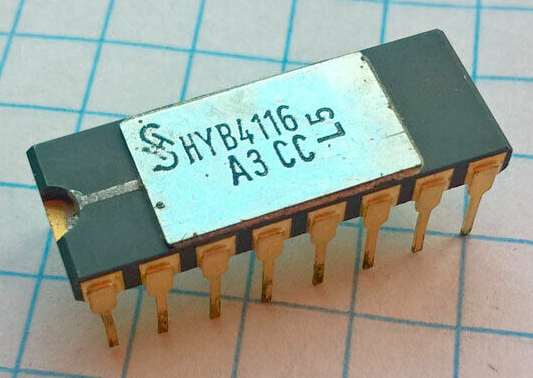

Siemens HYB4116-A3   photo         Ceramic case.
Siemens HYB4116-A4   photo         Ceramic case.
Siemens HYB4116-P2 150 ns   4116 list 1     datasheet Plastic case.
Siemens HYB4116-P3 200 ns photo 4116 list 1     datasheet Plastic case.

Signetics N2690-2 150 ns   4116 list 1     datasheet
Signetics N2690-3 200 ns   4116 list 1     datasheet
Signetics N2690-4 250 ns   4116 list 1     datasheet

[Soviet Union] К565РУ3   photo   4116 list 2     Military version has no "К" prefix.  "P" after the "К" indicates plastic.        (K565RU3)

Texas Instruments TMS4116-15 150 ns   4116 list 1     datasheet

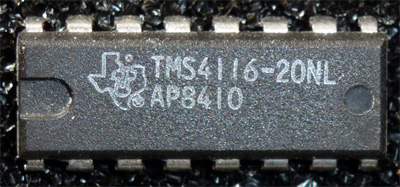

Texas Instruments TMS4116-20 200 ns photo 4116 list 1     datasheet
Texas Instruments TMS4116-25 250 ns   4116 list 1     datasheet

Toshiba TMM416D-2 150 ns ?           Ceramic case.

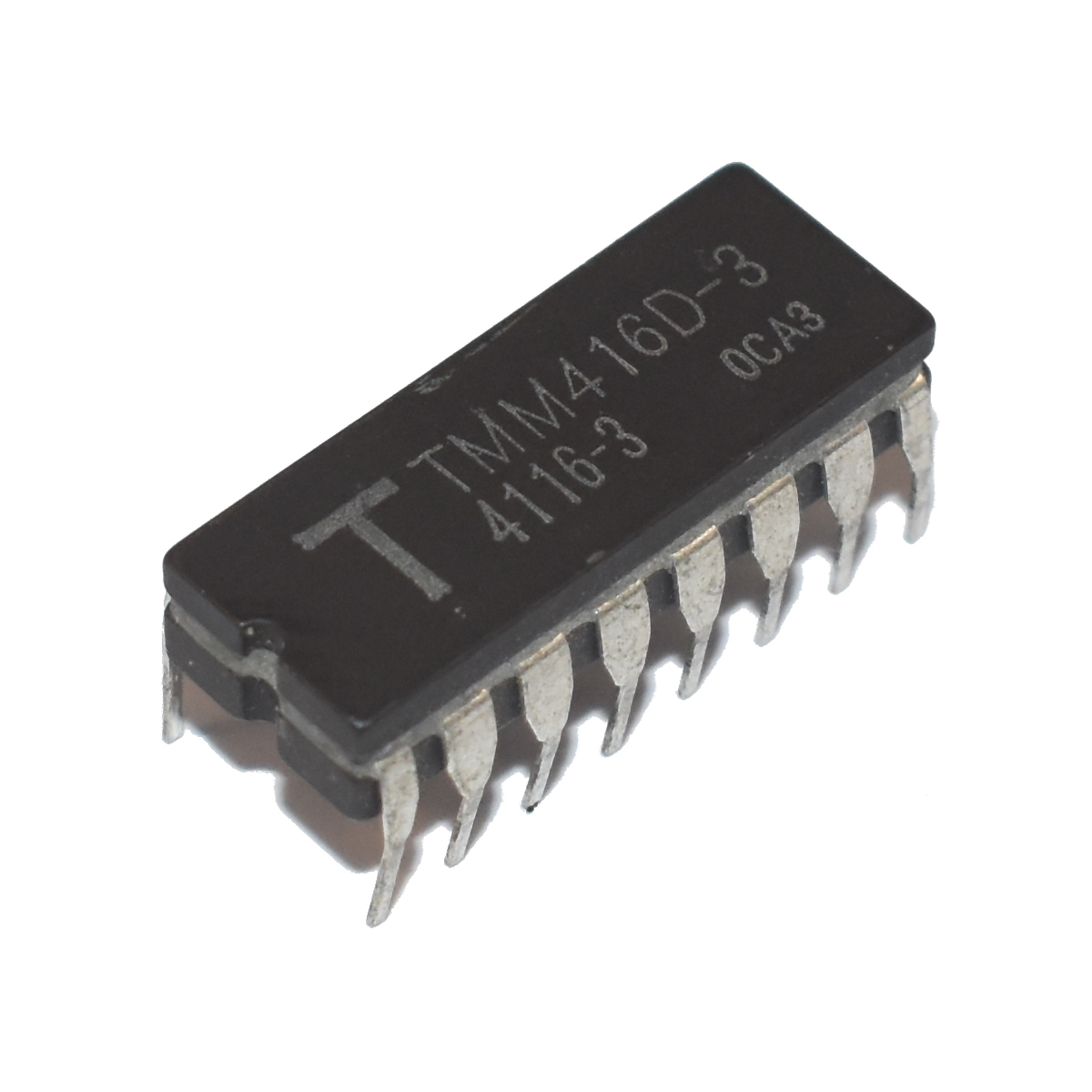

Toshiba TMM416D-3 200 ns ? photo         Ceramic case.

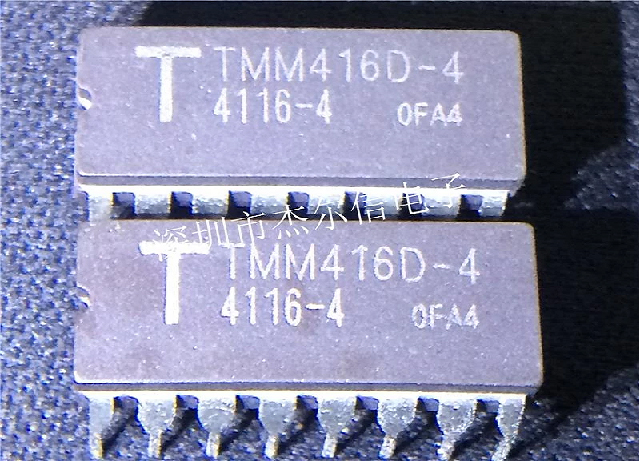

Toshiba TMM416D-4 250 ns ? photo         Ceramic case.
Toshiba TMM416P-2 150 ns   4116 list 1     datasheet Plastic case.
Toshiba TMM416P-3 200 ns   4116 list 1     datasheet Plastic case.
Toshiba TMM416P-4 250 ns   4116 list 1     datasheet Plastic case.
